Schooner Ernestina is hauled out at
Kelley's. The forward
plank that was pulled to get a look at the frame
condition up forward is replaced today. Tony
Marques, Tony Macedo and crew are fast and
accurate.
To fit the plank a piece of
thin plywood (luan) is used to 'spile' a pattern
onto the plank stock. Markings transferred onto
the plywood when tacked into the hole left by the
removed plank are then restored onto the plank
stock when the plywood is pulled and laid out
flat on the stock. Bevels must also be
transferred and the plank is cut to size. It
takes some skill to take a flat piece of 3"
thick white oak and cut it to the right shape so
it fits to compound curves in all directions.
Captains: Sophie Morse
Schooner Ernestina on the ways at Kelley
Shipyard.
|
Tony Marques prepares the end of
a plank for installation.
The plank is ready to go in.

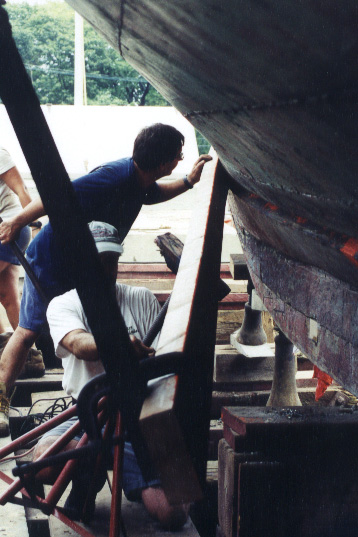

Starting the 3" thick white oak plank.
There is quite a bend to go for such a thick
piece of wood!
The nails are set by striking a maul with a
sledge hammer in counterbored holes that are then
bunged. Bungs are like plugs except the grain
runs in the same way as the surrounding plank (if
it were a plug the end grain would be exposed on
the surface)

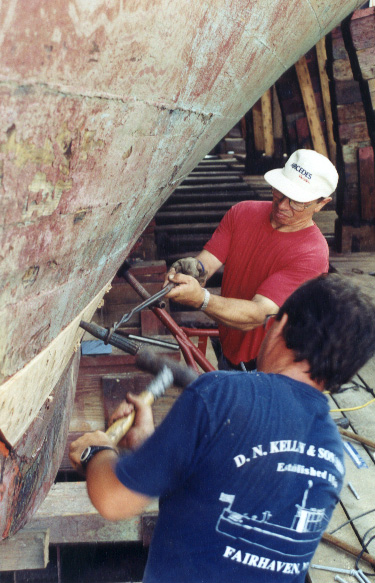

Setting the 3/8" x 6" square
galvanized boat nails.
Power planing the installed plank.
|
